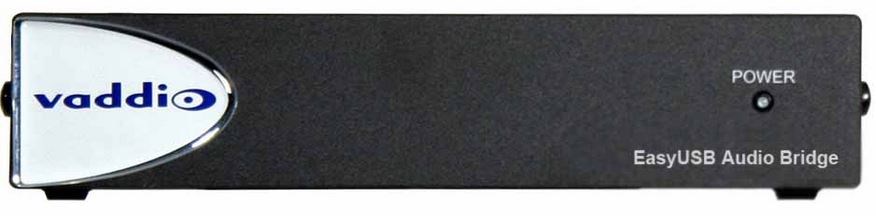

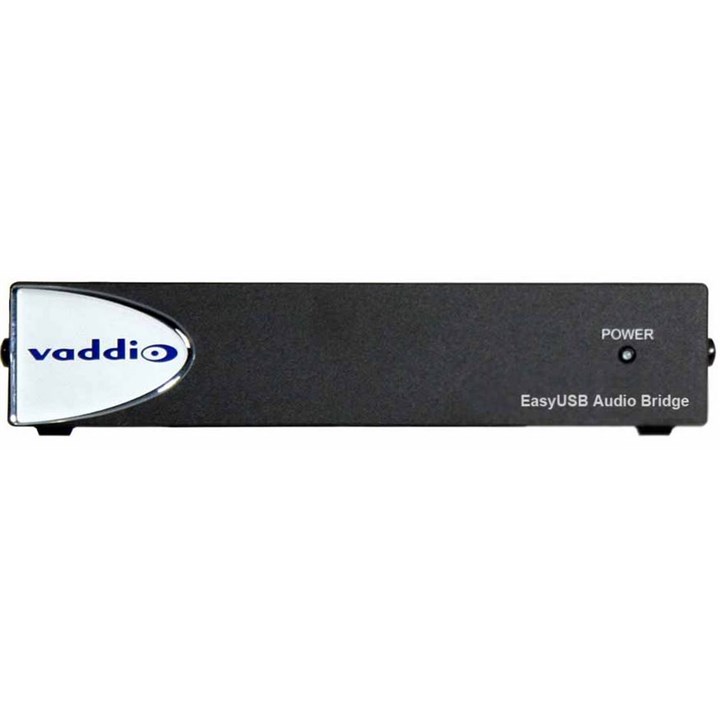

Vaddio EasyUSB AudioBRIDGE
The EasyUSB AudioBRIDGE for integrating professional audio equipment into USB-based PC applications � Unified Communications, lecture capture, recording or any other application that requires professional audio. Existing meeting room audio equipment can now be used with any UC soft client � Microsoft Lync / Skype for Business / Office 365, Zoom, WebEx, Cisco Jabber, Google+, etc.
Equipped with both balanced and unbalanced audio inputs/outputs for maximum flexibility, the AudioBRIDGE easily integrates with external audio mixers, wireless microphones, amplifiers, powered loudspeakers � any audio I/O devices that require USB integration.

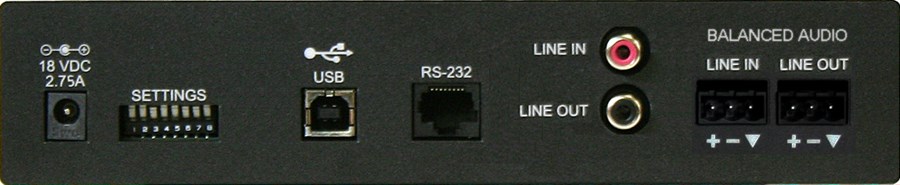

Professional audio equipment connects to the AV Bridge with balanced line level inputs/outputs on a 3-pin Euro Terminal block. Unbalanced audio inputs/outputs are supported with RCA connectors.
Key Features
Balanced Line Input: Mono line level (+4dB) input on 3-Pin Euro terminal mapped to the USB record channel
Unbalanced Line Input: Mono consumer level input (-10dB) on RCA mapped to the USB record channel
Balanced Line Output: Mono line level output on 3-pin Euro mapped to the USB playback channel
Unbalanced Line Output: Mono consumer level output on RCA mapped to the USB playback channel
USB Audio: UAC compliant Speakerphone with configurable terminal type for use with PC-based soft client
Part codes: 999-8536-000 (North America), 999-8536-001 (Europe/UK)
Information
The EasyUSB AudioBRIDGE for integrating professional audio equipment into USB-based PC applications � Unified Communications, lecture capture, recording or any other application that requires professional audio. Existing meeting room audio equipment can now be used with any UC soft client � Microsoft Lync / Skype for Business / Office 365, Zoom, WebEx, Cisco Jabber, Google+, etc.
Equipped with both balanced and unbalanced audio inputs/outputs for maximum flexibility, the AudioBRIDGE easily integrates with external audio mixers, wireless microphones, amplifiers, powered loudspeakers � any audio I/O devices that require USB integration.
Professional audio equipment connects to the AV Bridge with balanced line level inputs/outputs on a 3-pin Euro Terminal block. Unbalanced audio inputs/outputs are supported with RCA connectors.
Key Features
Balanced Line Input: Mono line level (+4dB) input on 3-Pin Euro terminal mapped to the USB record channel
Unbalanced Line Input: Mono consumer level input (-10dB) on RCA mapped to the USB record channel
Balanced Line Output: Mono line level output on 3-pin Euro mapped to the USB playback channel
Unbalanced Line Output: Mono consumer level output on RCA mapped to the USB playback channel
USB Audio: UAC compliant Speakerphone with configurable terminal type for use with PC-based soft client
Part codes: 999-8536-000 (North America), 999-8536-001 (Europe/UK)
Specification
No specifications available.
