HDMI and USB Extension on CAT6 with Audio, Integrated Control and IP

HDMI and USB Extension on CAT6 with Audio, Integrated Control and IP

EX-HDU-IP
ETA TBC

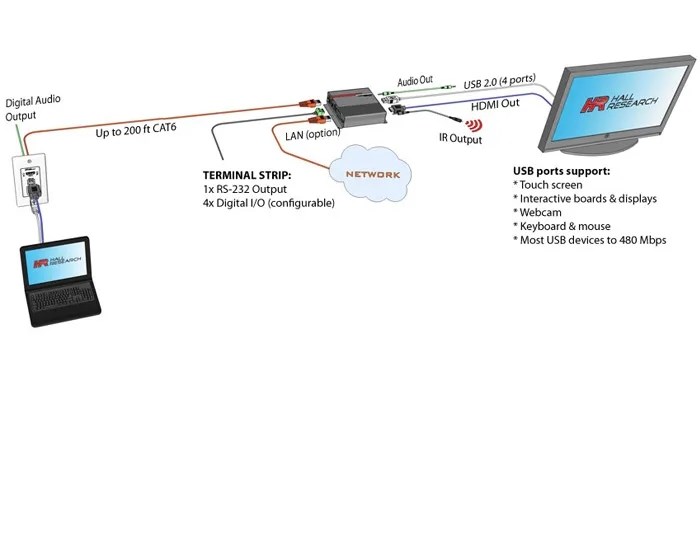

The EX-HDU is used to extend HDMI video and USB data on a single Cat6 cable up to 150 ft (46 meters). HDMI audio is extracted and is provided both as analog stereo and multi-channel digital. The EX-HDU can also be used to control other equipment by providing programmable contact closure I/O, RS-232 output, IR output, and optional LAN interface with internal WebGUI and IP control.
Read Full Description
The EX-HDU is used to extend HDMI video and USB data on a single Cat6 cable up to 150 ft (46 meters). HDMI audio is extracted and is provided both as analog stereo and multi-channel digital. The EX-HDU can also be used to control other equipment by providing programmable contact closure I/O, RS-232 output, IR output, and optional LAN interface with internal WebGUI and IP control. <span class="stock-tbc">ETA TBC</span> Request More Information

    Information

    Extends HDMI + USB 2.0 to 150 ft (46 m) on one Cat 6 cable

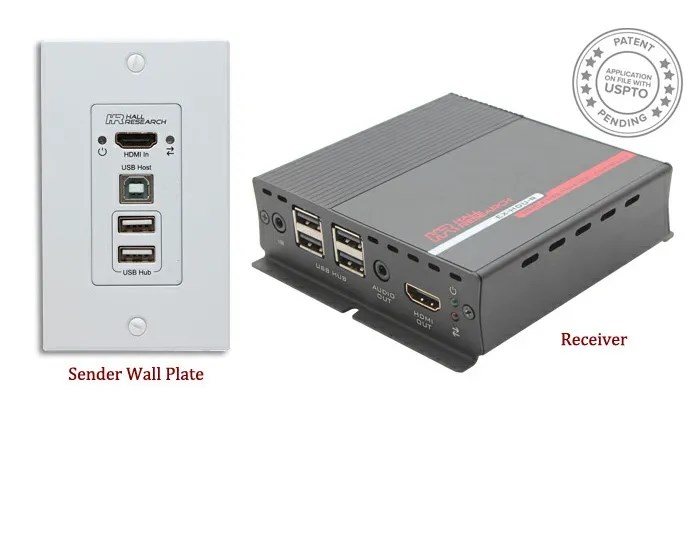

    Wall plate sender has 2-port hub for connection to USB devices to the host PC

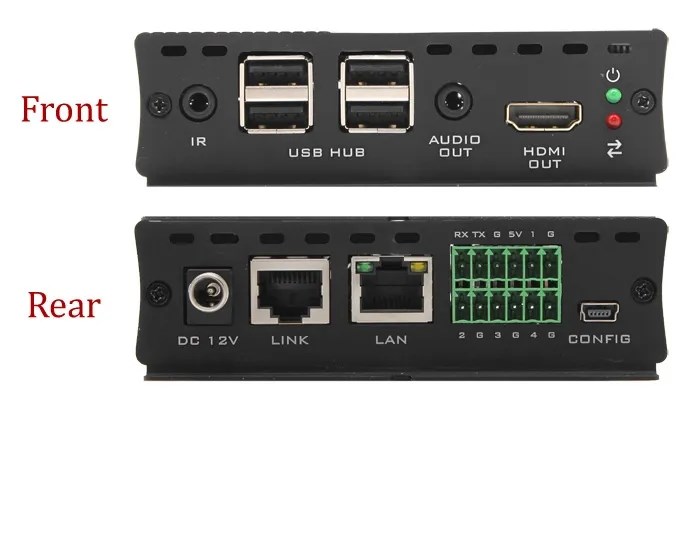

    Receiver provides HDMI, 4 USB ports, plus contact-closure I/O and RS-232 for display control

    HDMI Audio Extracted output (L/R analog) on Receiver

    Perfect for Interactive displays, Soft CODECs, and KVM extension

    Wall plate does not require separate power supply

    Receiver has IP (LAN) connectivity with WebGUI control
