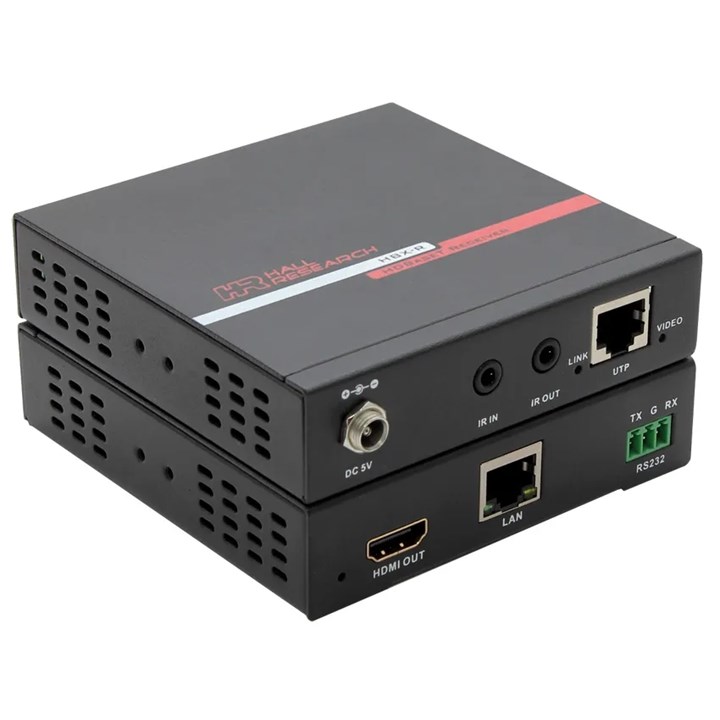

HDMI Video Extender With Ultra-HD AV, IR, RS232 and Ethernet (Receiver)

HDMI Video Extender With Ultra-HD AV, IR, RS232 and Ethernet (Receiver)

HBX-R
ETA TBC
This product is a Class A HDBaseT compliant Receiver that supports 100meter Cat6 range and is used to extend HDMI, RS-232, IR, and Ethernet (100BaseT) up to 100 meters (328 feet) using a single Cat6 cable.

Since the product uses the HDBaseT standard, video is extended pixel-by-pixel with no compression or latency. The extender supports all PC and HDTV Resolutions including 4K @ 30 Hz 4:4:4 or 4K @ 60 Hz 4:2:0. The IR extension preserves the modulation (carrier) frequency thereby providing compatibility to most standards.

Receiver includes a universal 5v power supply. IR emitter and IR detector cables are included.

Read Full Description
This product is a Class A HDBaseT compliant Receiver that supports 100meter Cat6 range and is used to extend HDMI, RS-232, IR, and Ethernet (100BaseT) up to 100 meters (328 feet) using a single Cat6 cable.<p> Since the product uses the HDBaseT standard, video is extended pixel-by-pixel with no compression or latency. The extender supports all PC and HDTV Resolutions including 4K @ 30 Hz 4:4:4 or 4K @ 60 Hz 4:2:0. The IR extension preserves the modulation (carrier) frequency thereby providing compatibility to most standards.<p> Receiver includes a universal 5v power supply. IR emitter and IR detector cables are included.<p> <span class="stock-tbc">ETA TBC</span> Request More Information

    Information

    Fully Compliant with HDBaseT standard

    Supports virtually all HDMI and DVI resolutions including 4K UHD

    Extends, Video, Audio, RS-232, IR, and Ethernet

    Supports extension to 100 m (330 ft)

    Fully isolates grounds between TX and RX sides

    Compact, Rugged, Reliable, and Economical

    Plug and play, no configuration needed

    Receiver can be powered via PoC from senders that provide PoC such as HSM-44-BX Matrix Switch with HDBaseT outputs
