HDMI 2.0 Audio Inserter, Extractor, EDID Manager and Equalizer

HD-AUD-IO
ETA TBC

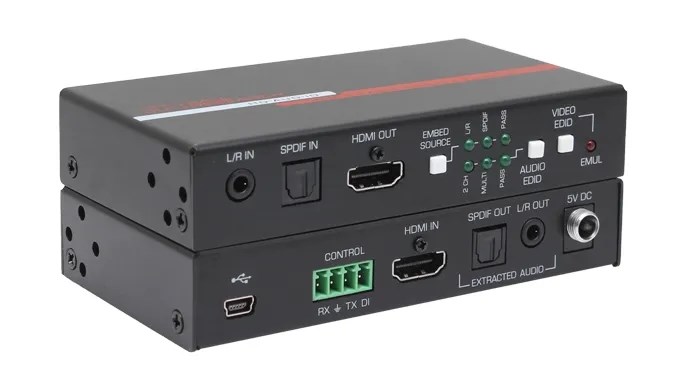

The Hall Research HD-AUD-IO is an award winning HDMI audio extractor (de-embedder) and inserter (embedder). The product also provides many benefits such as:

EDID management with learn and upload EDID functions

HDMI cable equalization (supports cable lengths to 20 meters)

Re-clocks video and negotiates HDCP overcoming incompatibility issues

RS-232 and contact closure to mute HDMI audio (or video)

Generates HDMI signal with audio only with no HDMI input

Simultaneously extracts Audio and allowing embedding of external audio

The product provides one HDMI input with a corresponding HDMI output. The HDMI input audio signal simultaneously extracts to both 2-channel L/R analog and Digital SPDIF (TOSLINK).

The product provides two audio inputs (analog and digital). Users can select which audio to embed in the HDMI output. It can be the same as the original HDMI audio (pass-thru), SPDIF digital, or 3.5mm L/R analog.

Advanced EDID management allows users to control the video portion as well as the audio part of the EDID. The EDID presented to the video source connected to the HDMI input can pass from the downstream device or emulate an EDID from internal memory. The device can also “Learn” the EDID connected to its HDMI output.

The product has a video bandwidth of 18 Gbps and supports resolutions up to 4K@60 Hz 4:4:4 with HDR. It supports HDCP 2.2 as well as HDCP 1.4 if needed.

    Information

    Supports 4K/60 4:4:4, HDR, HDCP 2.2 & 1.4

    Extracts both LR analog and digital audio embedded in the HDMI input

    Embeds either LR analog or digital audio into the HDMI output

    Generates HDMI output with embedded audio with no HDMI input

    Can pass-thru or emulate EDID

    Configurable digital input for muting audio and/or video

    18 Gbps bandwidth for compatibility with HDMI 2.0b

    Backwards compatible to HDMI 1.4 and DVI Specifications

    Supports multi-channel digital and 2-channel analog audio

    EDID management

    RS-232 controllable
