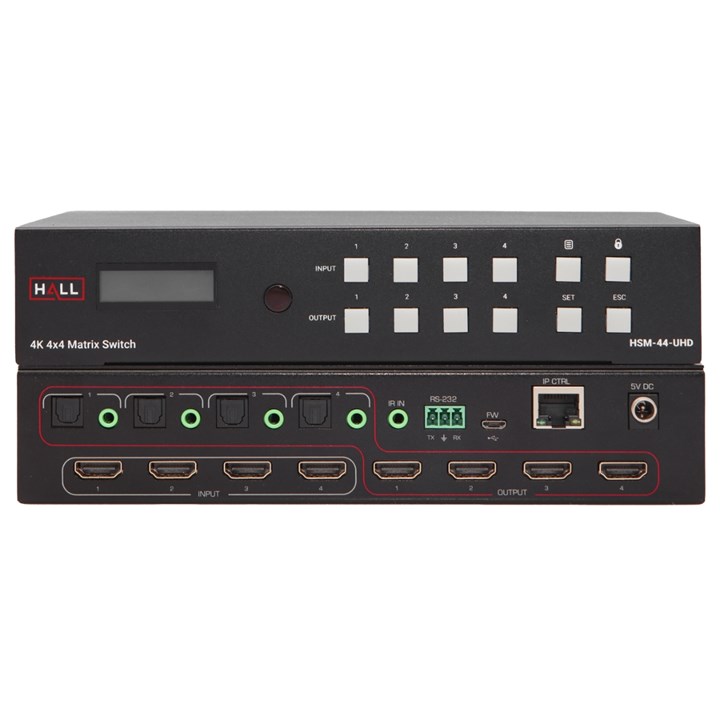

HSM-44-UHD 4x4 Matrix Video Switcher

HSM-44-UHD
ETA TBC
As a member of Genesis Digital Matrix series of switchers, the HSM-44-UHD matrix provides exceptional quality, intuitive operation and powerful control methods that are hallmarks of Hall Technologies video matrix switchers.

The 4K matrix is a 4×4 cross-point switch in a compact 1-RU enclosure.

The HSM-44-UHD supports HDMI resolutions up to 4K @ 60Hz4:4:4. It also supports HDCP 2.2 and 1.4, 3D, deep-color and PCM, Dolby, DTS, and HD audio standards. The matrix intelligently calculates EDID for each input based on the EDID of the connected sinks.

Users can save and recall multiple matrix routing configuration PRESETs. HDMI outputs can also be blanked. The matrix includes a two-line character LCD on its front panel to display the current video routing and to facilitate creating or recalling presets.

The HSM-44-UHD matrix is ideal for conference rooms, multimedia presentations, digital signage, houses of worship, and many other settings.

    Information

    HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)

    Bandwidth up to 18Gbps

    HDCP2.2 input, HDCP2.2 output

    HDCP1.4 input, HDCP1.4 output

    Support HDR10

    4xHDMI Input, 4xHDMI output

    Analog and Digital Audio extraction

    Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays

    Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control

    Support Dolby True HD and DTS-HD master audio, Dolby Atmos under copy EDID mode

    Support firmware updating through USB port
